In hydraulic systems, selecting the correct hose size is crucial for ensuring optimal performance, safety, and longevity. The hydraulic hose serves as the conduit for fluid power, and its dimensions directly impact the system's efficiency and reliability. This comprehensive guide delves into the methods and considerations for accurately measuring hydraulic hose sizes, providing insights into industry standards, measurement techniques, and the implications of hose dimensions on system performance.
Hydraulic hoses are characterized by several key dimensions:
Inner Diameter (ID): The measurement of the internal opening of the hose, which determines the flow capacity.
Outer Diameter (OD): The total diameter of the hose, including the tube, reinforcement, and cover.
Length: The distance from one end of the hose to the other, including fittings if present.
Accurate measurement of these dimensions is essential for selecting the appropriate hose for a given application.
The inner diameter is a critical parameter that affects the flow rate and velocity of the hydraulic fluid. An undersized hose can lead to increased pressure drops and reduced system efficiency, while an oversized hose may result in unnecessary costs and space constraints.
In the hydraulic industry, hose sizes are often denoted using the "dash size" system, where each dash number corresponds to a specific inner diameter in sixteenths of an inch. For example:
Dash 4 (-4): 4/16" = 1/4" ID
Dash 6 (-6): 6/16" = 3/8" ID
Dash 8 (-8): 8/16" = 1/2" ID
This standardized system facilitates easy identification and selection of hoses based on their inner diameters.
To measure the inner diameter:

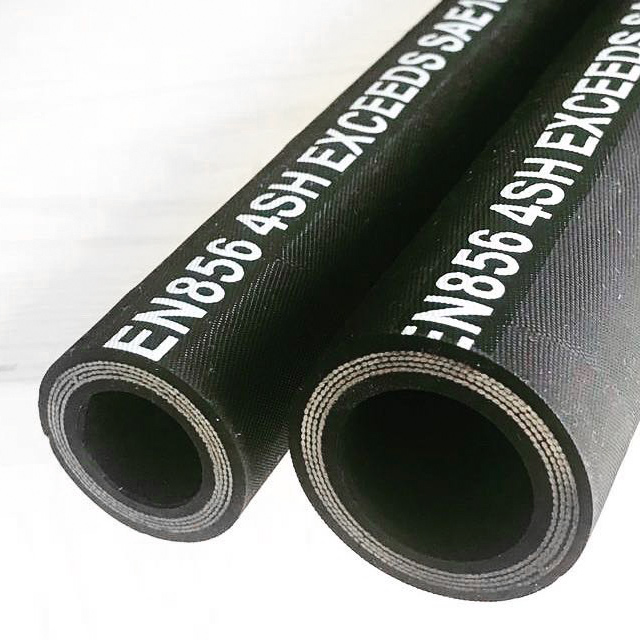

Layline Inspection: Check the hose's layline—the printed information along its length—for size specifications.
Caliper Measurement: If the layline is illegible, use a caliper to measure the internal opening of the hose directly.
Accurate ID measurement ensures compatibility with system requirements and prevents issues related to flow restrictions or excessive pressure drops.
The outer diameter encompasses the hose's entire cross-section, including the inner tube, reinforcement layers, and outer cover. While OD does not directly affect fluid flow, it is crucial for:
Routing and Installation: Ensuring the hose fits within designated spaces and does not interfere with other components.
Clamping and Support: Selecting appropriate clamps and supports that accommodate the hose's external dimensions.
To measure the outer diameter:
Caliper Measurement: Use a caliper to measure the external width of the hose at several points to account for any irregularities.
Reference Charts: Consult manufacturer specifications or industry-standard charts that correlate dash sizes with typical outer diameters.
Accurate OD measurement is vital for ensuring proper fitment and avoiding potential abrasion or interference issues during operation.
The length of a hydraulic hose is measured from end to end, including any fittings if present. Proper length measurement is essential for:
System Integration: Ensuring the hose reaches between components without excessive slack or tension.
Pressure Drop Considerations: Longer hoses can contribute to increased pressure drops due to frictional losses.
To measure the hose length:
Straight Hoses: Use a tape measure to determine the distance from one end of the hose to the other, including fittings.
Hoses with Bends: Follow the hose's path, accounting for bends and curves, to measure the actual length required for installation.
Accurate length measurement ensures optimal system performance and prevents issues related to hose movement or pressure fluctuations.
Selecting the correct hose size is vital for maintaining system efficiency, safety, and longevity. Incorrect sizing can lead to:
Reduced Performance: Undersized hoses may cause excessive pressure drops, leading to decreased system efficiency.
Component Damage: Oversized hoses can result in sluggish system response and potential damage to components due to improper fluid dynamics.
Safety Hazards: Improperly sized hoses may fail under pressure, posing risks to personnel and equipment.
By accurately measuring and selecting the appropriate hose size, these issues can be mitigated, ensuring reliable and safe system operation.
Q1: What is the significance of the dash size in hydraulic hoses?
A1: The dash size indicates the hose's inner diameter in sixteenths of an inch. For example, a -8 hose has an ID of 8/16", or 1/2".
Q2: Can I use the outer diameter to determine the hose size?
A2: While the outer diameter is important for installation considerations, the inner diameter is the primary factor in determining the hose's size and flow capacity.
Q3: How does hose length affect system performance?
A3: Longer hoses can lead to increased pressure drops due to friction, potentially reducing system efficiency. It's important to balance hose length with system requirements.
Q4: What tools are recommended for measuring hose dimensions?
A4: Calipers are ideal for measuring both inner and outer diameters, while a tape measure is suitable for determining hose length.
Q5: Are there industry standards for hydraulic hose sizing?
A5: Yes, standards such as SAE and ISO provide guidelines for hose dimensions, performance, and testing to ensure compatibility and safety across various applications.
Accurate measurement and selection of hydraulic hose sizes are fundamental to the efficiency and safety of hydraulic systems. By understanding and applying the appropriate measurement techniques and standards, professionals can ensure optimal system performance and longevity.
