Hydraulic systems power everything from industrial machinery to construction equipment. At the core of these systems are hydraulic hoses, which carry pressurized fluid to actuators, motors, and valves. For a hydraulic system to function safely and efficiently, selecting the correct hydraulic hose size is critical. Using an incorrectly sized hose can lead to increased pressure loss, hose failure, or decreased machine performance.
In this in-depth guide, we’ll explain how hydraulic hoses are sized, analyze common sizing standards, explore essential parameters, and provide data comparisons that help engineers and technicians make informed decisions. Whether you’re designing a new system or replacing old hoses, this guide provides the knowledge you need.
Hydraulic hose sizing involves several key parameters that work together to determine how a hose performs in specific hydraulic applications. The most important factors to consider include:
Inner diameter (ID)
Outer diameter (OD)
Hose length
Wall thickness
Pressure rating
Flow rate compatibility
Fitting size and type
Incorrect sizing can lead to pressure drops, reduced flow rates, and even hose bursts. That’s why understanding the sizing conventions and terminology is essential.
There are two main sizing standards used in the industry: the Dash Size system and the ISO 18752 standard.
The Dash Size is an industry-standard method of describing the inner diameter (ID) of a hydraulic hose in sixteenths of an inch. For example:
| Dash Size | Inner Diameter (inches) | Inner Diameter (mm) |
|---|---|---|
| -2 | 1/8" | 3.2 mm |
| -4 | 1/4" | 6.3 mm |
| -6 | 3/8" | 9.5 mm |
| -8 | 1/2" | 12.7 mm |
| -10 | 5/8" | 15.9 mm |
| -12 | 3/4" | 19.1 mm |
| -16 | 1" | 25.4 mm |
| -20 | 1-1/4" | 31.8 mm |
| -24 | 1-1/2" | 38.1 mm |
| -32 | 2" | 50.8 mm |
Understanding dash sizes is crucial for technicians and engineers when matching hoses with the correct fittings and connectors.
The ISO 18752 standard simplifies hose selection by classifying hoses based on maximum operating pressure and impulse testing. It emphasizes performance-based selection over size-based criteria. ISO 18752 hoses are categorized into:
Standard (A, B, C)
Compact (AC, BC, CC)
High performance (D, DC)
Each classification includes hose sizes that match global performance expectations. While Dash Size is still widely used, ISO 18752 is increasingly adopted in global hydraulic markets.
Let’s explore the most important hydraulic hose sizing parameters and how they affect performance:
The inner diameter determines how much fluid can pass through the hose. If the hydraulic hose has a diameter that’s too small, it creates back pressure and reduces system performance. On the other hand, a hose that’s too large can be expensive, bulky, and unnecessary.
The flow rate capacity of a hose increases exponentially with the diameter. For example:
| Hose ID | Flow Rate at 10 ft/sec (GPM) |
|---|---|
| 1/4" | 4 GPM |
| 1/2" | 13 GPM |
| 1" | 52 GPM |
Properly matching the ID to the system’s flow requirement ensures efficient fluid transfer.
The outer diameter impacts how the hose fits in tight installation areas. While OD doesn't affect flow, it plays a critical role in clamp fittings, routing, and abrasion resistance.
Wall thickness is derived from the difference between the OD and ID. A thicker wall generally means a higher pressure rating, but it can reduce flexibility.
When sizing hydraulic hoses, length is crucial for routing and pressure calculations. Longer hoses can introduce:
Pressure drop due to friction
Lag in system response
Increased risk of kinking
Best practices suggest adding slack (typically 5–10%) to accommodate movement, vibration, and thermal expansion.
Every hydraulic hose has a maximum working pressure and burst pressure. These are affected by the hose’s material, reinforcement layers, and diameter. Overpressurizing a hose leads to premature failure or dangerous blowouts.
Use the 4-to-1 safety factor rule: if a hose’s burst pressure is 16,000 PSI, the max working pressure should be no more than 4,000 PSI.
Flow velocity affects hose selection. The higher the speed, the more turbulent flow and heat generation, which reduces hose life.
Recommended maximum flow velocities:
Pressure lines: 15–25 ft/sec
Return lines: 10–15 ft/sec
Suction lines: 2–4 ft/sec
Friction loss increases with smaller ID and longer hose lengths, so proper sizing ensures optimal system efficiency.
Hydraulic hoses can be reinforced with:

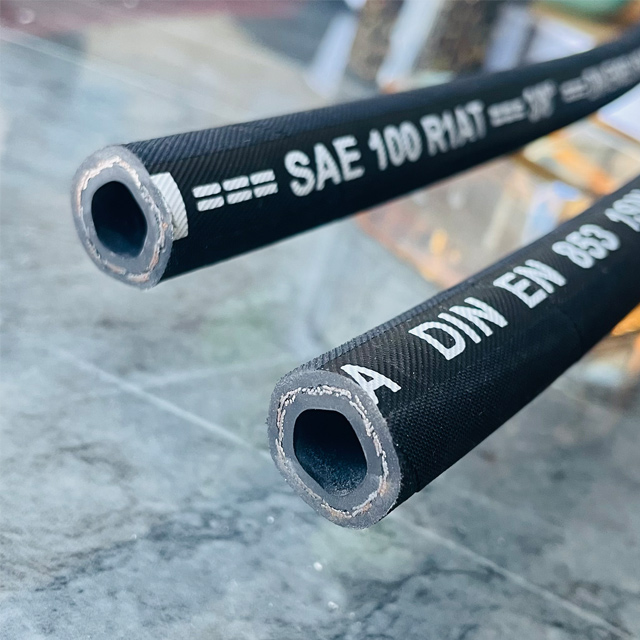

Braided wire (1-wire, 2-wire)
Spiral wire (4-wire, 6-wire)
Textile reinforcement for low-pressure applications
The reinforcement affects pressure capacity and flexibility. Larger diameter hoses often need multi-spiral reinforcement to handle higher system pressures.
To simplify the process, here’s a step-by-step guide for sizing hydraulic hoses:
| Step | Action | Purpose |
|---|---|---|
| 1 | Determine flow rate (GPM or L/min) | To estimate required ID |
| 2 | Measure or calculate hose length | For pressure drop calculations |
| 3 | Identify system pressure | To choose correct hose pressure rating |
| 4 | Match dash size to flow rate | Use dash size table |
| 5 | Check compatibility with fittings | Avoid leaks or mismatches |
| 6 | Evaluate installation environment | Temperature, abrasion, vibration |
If your hydraulic system requires 20 GPM at 2,500 PSI, you'd likely choose a -10 (5/8") or -12 (3/4") hose with 2-wire or spiral reinforcement, rated for at least 3,000 PSI.
Proper hose sizing doesn’t stop at the hose. Hydraulic hose fittings must match the inner diameter, thread type, and pressure rating of the hose. Common fitting styles include:
JIC (Joint Industry Council)
NPT (National Pipe Thread)
BSP (British Standard Pipe)
ORFS (O-Ring Face Seal)
Using the wrong fitting can result in leaks, hose ejection, or system inefficiency.
This comparison table helps visualize the relationship between hose size and maximum recommended flow rate:
| Dash Size | Hose ID (inch) | Recommended Flow Rate (GPM) | Max Pressure Rating (PSI) |
|---|---|---|---|
| -4 | 1/4" | Up to 4 | 5,000 |
| -6 | 3/8" | Up to 8 | 4,000 |
| -8 | 1/2" | Up to 12 | 3,500 |
| -10 | 5/8" | Up to 16 | 3,000 |
| -12 | 3/4" | Up to 24 | 2,500 |
| -16 | 1" | Up to 50 | 2,000 |
| -20 | 1-1/4" | Up to 70 | 1,800 |
| -24 | 1-1/2" | Up to 100 | 1,500 |
The field of hydraulic hose manufacturing is evolving. Some current trends include:
Compact hose designs: Modern hoses deliver the same flow with smaller OD and increased flexibility.
Higher temperature ratings: New materials support fluids over 300°F for harsh industrial environments.
Eco-friendly designs: Hose materials are being developed for bio-hydraulic fluids and low-toxicity systems.
Wireless hose monitoring: Embedded sensors monitor pressure, temperature, and wear for predictive maintenance.
These trends highlight the increasing complexity and specialization in hose sizing, reinforcing the importance of accurate data-driven selection.
The dash size refers to the inner diameter of a hydraulic hose in sixteenths of an inch. For example, a -8 hose has an ID of 8/16" or 1/2".
Using a larger hydraulic hose than necessary can reduce flow velocity and increase costs. However, it may be useful in applications where low pressure drop and reduced friction loss are desired.
Use calipers to measure the inner diameter, outer diameter, and overall length of the hose. You can also identify the fitting thread using thread gauges.
Using the wrong size can lead to:
Excessive pressure drop
Inefficient flow
Premature wear or burst
Machine downtime
Always consult manufacturer sizing charts or use hydraulic sizing software.
Yes, fittings must match the hose’s inner diameter, thread type, and pressure rating. Using incompatible fittings can result in leaks or system failure.
Choosing the correct hydraulic hose size is essential for maximizing system efficiency, safety, and lifespan. Sizing depends on inner diameter, flow rate, pressure rating, length, and fitting compatibility. Understanding the dash size system, ISO standards, and performance trends ensures that hoses are well-matched to their applications.
Always consult technical documentation, use sizing charts, and consider the latest innovations when selecting your hydraulic hoses. A well-sized hydraulic hose not only ensures reliable operation but also minimizes costs and maintenance over time.
