The 3/8 hydraulic hose stands as the undeniable sweet spot of the fluid power industry. It perfectly balances rapid fluid velocity requirements against the physical demand for compact routing. However, operators often face a hidden business problem. Purchasing the wrong hose size or material directly causes severe pressure drops, premature wear, or catastrophic safety failures. Many maintenance teams mistakenly assume they can simply upgrade a hose size to solve sluggish system speeds. Reality proves much more complex, as upgrading rarely fixes the true system bottlenecks.
This technical evaluation guide gives maintenance managers, equipment owners, and procurement specialists an evidence-based framework. You will learn exactly how to evaluate, size, and deploy these medium-duty lines effectively. We will uncover why larger diameters do not always mean better performance. You will also discover how proper material selection prevents sudden field failures.
Industry Standard (Dash -6): 3/8" lines are globally recognized as -6 in dash sizing, serving as the standard for moderate-flow, high-pressure equipment.
Inverse Pressure Rule: Smaller diameters handle higher pressures. A 3/8" hose inherently boasts a higher maximum operating pressure (PSI) than a 1/2" hose of the same construction.
System Bottlenecks: Upgrading from 3/8" to 1/2" will not speed up sluggish hydraulic cylinders if the restriction lies within the pump displacement or valve restrictors.
Material Specificity: Selecting between Nitrile, Thermoplastic (TPU), or PTFE depends strictly on operating temperature, cycle frequency, and conductivity requirements.
To understand fluid power dynamics, we must first define the 3/8-inch parameter accurately. In hydraulic terminology, the fraction 3/8 refers strictly to the Inner Diameter (I.D.). This measures exactly 9.7 millimeters. The inner diameter acts as the critical metric for calculating fluid velocity and internal friction loss. Engineers rely on this specific measurement to guarantee machinery operates within safe mechanical limits.
Machinery designers favor this size because it strikes a crucial flow-versus-footprint balance. Medium-duty machinery requires steady fluid delivery without overwhelming the physical space. The 9.7mm opening accommodates standard flow rates perfectly. It keeps the internal fluid velocity within the industry-recommended rule of 15 to 20 feet per minute. By staying within this velocity window, the system minimizes heat generation. Simultaneously, the relatively small outer diameter maintains a tight bend radius. This flexibility allows engineers to route lines cleanly through cramped engine compartments or narrow articulating arms.
Return lines demand slightly different structural rules. When you deploy these lines in a return state, they often face vacuum conditions. Fluid pulling back into the reservoir creates negative pressure. Standard flexible walls can collapse inward under this stress. To prevent this dangerous restriction, vacuum-rated lines usually require helical wire support. The embedded wire acts as a skeleton. It keeps the inner tube wide open even when the system actively draws fluid backward.
This specific inner diameter dominates several heavy-duty sectors. Its unique blend of high pressure tolerance and flexibility makes it indispensable across diverse work environments.
Construction & Earthmoving:
Implementation: You will find these lines heavily utilized on excavators, skid steer loaders, and backhoes.
Function: They provide the precise control necessary for bucket articulation and lifting arm actuation. Additionally, they handle the intense cyclic loading required by heavy concrete pump delivery systems.
Agricultural Machinery:
Implementation: Tractors, combine harvesters, and rear implement lifts rely on this size.
Function: Farming equipment primarily manages intermittent hydraulic loads. Raising a heavy plow requires sudden bursts of energy. Continuous high flow matters less here than absolute pressure retention. The system must hold the heavy implement steady over rough terrain.
Mining, Automotive, & Defense:
Implementation: Applications include deep-shaft mining jacks, heavy vehicle power steering systems, brake calipers, and armored vehicle turret rotation mechanisms.
Function: These sectors execute high-precision, extreme-pressure movements. They operate in highly restricted environments. Severe space constraints absolutely prohibit the use of larger, bulkier lines. The smaller outer profile prevents friction damage against nearby moving metal parts.
A widespread misconception plagues the fluid power industry. Many operators assume they can boost performance simply by increasing tube sizes. To make sound engineering decisions, we must debunk these common sizing myths.

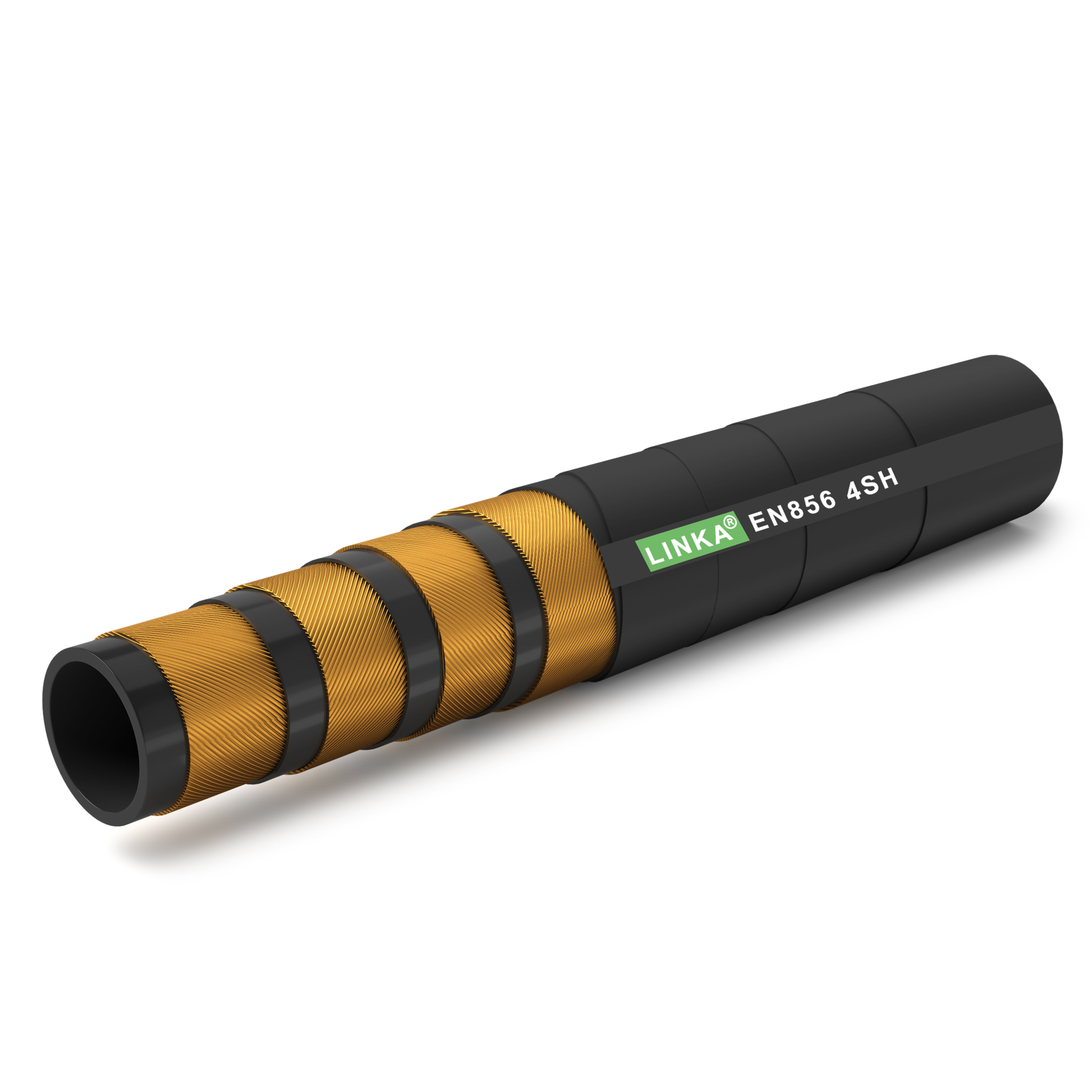

Physics dictates an inverse relationship between inner diameter and burst pressure limits. As the inner tube gets wider, the internal fluid exerts force over a larger surface area. This increased surface area places greater strain on the wire reinforcement. Therefore, a smaller line handles higher pressures much more safely. For example, a standard two-wire braided 3/8-inch model routinely handles up to 4,000 PSI safely. If you examine the exact same two-wire construction in a 1/2-inch equivalent, the maximum operating limit drops to 3,500 PSI. Sizing up actually sacrifices your safety margin.
We often hear buyers claim, "Bigger hoses make equipment move faster." This represents a fundamental misunderstanding of hydraulic bottlenecks. Upgrading to a 1/2-inch line on a typical 48-to-60-inch loader arm yields negligible speed improvements. The restriction rarely exists inside a short run of tubing. If your tractor arms move slowly, the actual flow bottleneck likely hides elsewhere. The system speed depends heavily on the pump displacement volume or the internal control valve restrictors. Pushing fluid through a slightly wider tube cannot compensate for a weak pump.
Original Equipment Manufacturers (OEMs) use a hybrid approach to maximize efficiency. Standard design logic dictates using 1/2-inch lines for the main pressure and return trunks. These thick primary arteries handle the total volumetric flow coming directly from the pump. As the circuit nears the active implements, the architecture changes. Engineers use steel T-fittings to branch the main trunk into multiple flexible 3/8-inch lines. These smaller branches handle the final run to individual cylinders. This strategy delivers adequate total flow while maintaining excellent bend radius at the pivot points.
Choosing the correct material proves just as critical as selecting the right diameter. The fluid power industry relies on a proven evaluation framework known as S.T.A.M.P.E.D. This acronym stands for Size, Temperature, Application, Media, Pressure, Ends, and Delivery. It structures your entire buying decision. Let us evaluate the three dominant materials using this mindset.
When selecting a traditional SAE Hose, Nitrile rubber remains the global baseline. However, extreme environments often demand modern polymers.
Material Type | Primary Advantages | Notable Disadvantages | Best Application Environment |
|---|---|---|---|
Nitrile Rubber (Traditional) | High flexibility in extreme cold. Zero "memory effect" (lays flat easily). Fully compliant with SAE 100 R1/R2/R17 ratings. | Vulnerable to UV degradation. Prone to severe external abrasion unless protected by UHMW sleeves. | Standard outdoor construction machinery; general agricultural use. |
Thermoplastic (TPU) | Exceptional burst safety factors (often 4:1). Non-conductive. Highly abrasion-resistant outer cover. | Stiffens noticeably in cold weather. Retains a coiled "memory" making long linear routing difficult. | Bucket lifts near power lines; high-friction mobile equipment. |
PTFE (Teflon) | Extreme temperature tolerance (up to 450°F). Broad chemical and corrosive media immunity. | Poor bend radius. Kinking causes permanent structural damage. Sizing caveat applies (runs smaller). | High-heat industrial plants; corrosive chemical processing. |
Important Note on PTFE Sizing: You must pay close attention to PTFE dash sizes. Due to manufacturing standards, a PTFE -6 tube often features a slightly smaller inner diameter compared to rubber equivalents. Always verify the exact millimeter specifications before installation.
A premium tube offers no value without secure end connections. You must match the ends precisely to the -6 diameter. A mismatch immediately compromises the entire circuit's pressure rating. Using incorrect thread pitches or incompatible sealing faces guarantees catastrophic fluid loss.
Evaluate your connections against these common industry standards:
ORFS (O-Ring Face Seal): This standard excels in high-vibration environments. It easily handles up to 6,000 PSI. The design uses elastomer compression. A small O-ring sits in a machined groove, creating a zero-leak, metal-to-metal sealing face when tightened correctly.
JIC 37-Degree Flare: Engineers consider this the legacy standard. It remains highly popular for fluid diagnostics and testing ports. It handles high pressure exceptionally well. However, it relies entirely on precise torque. Over-tightening can crack the flare, while under-tightening causes weeping leaks.
NPT Dryseal: These utilize tapered threads. They seal through physical mechanical deformation as you force the threads together. They remain very economical and easy to source. Unfortunately, they are highly prone to over-tightening damage. Once you deform the threads, you cannot reuse them effectively.
Split-Flange: This style proves ideal when marrying flexible lines to rigid metal tubing. Mechanics use split-flanges in extremely cramped compartments. You secure the connection using four bolts, which evenly distributes the clamping force without requiring massive wrench clearance.
Safety protocols protect both human life and machinery integrity. Fluid power systems harbor immense stored energy. You must treat every pressurized line with profound respect.
We must warn operators about the lethal risks of fluid injection. If a pinhole leak develops at 4,000 PSI, the escaping fluid acts like an invisible, razor-sharp needle. It can easily puncture standard work gloves and human skin. The toxic oil enters the bloodstream, causing severe tissue necrosis. Standard Personal Protective Equipment (PPE) is not a substitute for proper depressurization. You must relieve all system pressure before touching any lines or fittings.
A sudden fitting blowout unleashes massive kinetic energy. The line will violently thrash around the work area. This thrashing easily breaks bones or causes fatal head trauma. Safety regulations mandate the use of physical constraints for lines operating near human operators. You must install whip checks, nylon burst sleeves, or steel deflection shields. These simple devices tether the line securely if the crimp fails.
Smart maintenance scheduling prevents sudden failures. We highly recommend replacing exceptionally long runs (greater than 20 feet) with segmented shorter sections. You can join these shorter segments together using secure steel bulkheads. This strategy isolates common wear points. If a specific section rubs against a pivoting joint, you only need to replace that one short segment. This minimizes system downtime and drastically reduces your maintenance frequency over the machine's lifespan.
Fluid power engineering requires precision, not guesswork. The 3/8-inch line serves as the optimal choice for an enormous variety of industrial applications. It perfectly balances the ability to handle 4,000+ PSI, maintain compact bend radiuses, and deliver moderate fluid flow. Upgrading to thicker lines rarely solves fundamental system bottlenecks. Instead, success relies on matching your materials and fittings to your exact environmental demands.
Take proactive action today. Advise your maintenance buyers to audit the machinery's pump displacement first. Next, thoroughly verify the ambient operating temperatures to choose wisely between standard rubber, thermoplastic, or PTFE. Finally, meticulously inspect your current fitting threads before placing any new orders. Precise evaluation prevents catastrophic field failures.
A: The fluid power industry uses a standardized numbering system based on 1/16-inch increments. A "dash" number identifies the inner diameter. To calculate the size, you place the dash number over 16. Therefore, a -6 translates directly to 6/16 of an inch. When simplified, 6/16 equals exactly a 3/8-inch inner diameter.
A: No, changing short lines will not increase cylinder speed. Flow bottlenecks rarely exist within short tubing runs. The system's actual speed limitations usually stem from the main pump's maximum displacement volume or internal valve restrictors. Upgrading tube size without upgrading the pump yields zero noticeable speed improvements.
A: A standard rubber line utilizes a strict 2:1 safety factor. This ratio means the absolute burst pressure is engineered to be double the recommended maximum operating pressure. In contrast, specialized thermoplastic (TPU) lines often feature a higher 4:1 safety factor, providing extreme protection against sudden pressure spikes.
A: Yes, you can use them for long runs. However, over extended distances, friction increases significantly. This friction induces noticeable pressure drops at the implement. For lengths exceeding 20 feet, engineers might recommend sizing up to a 1/2-inch line specifically to mitigate friction loss, particularly on low-pressure return circuits.
