Upgrading fluid lines often feels like the easiest way to fix sluggish machinery. You might assume a larger diameter instantly boosts equipment speed and power. However, the rigid laws of fluid dynamics dictate otherwise. Blindly swapping parts can introduce hidden bottlenecks rather than solving your performance issues. Choosing an oversized line significantly alters pressure tolerances, bend radii, and routing dynamics. It forces your system's pumps and valves to operate under conditions they were never designed to handle.
This guide dismantles the stubborn "bigger is always better" myth. You will learn the exact operational scenarios where a 1/2 hydraulic hose proves genuinely optimal. We will outline continuous flow demands, pressure limitations, and safety requirements. Furthermore, we provide a strict evaluation framework to help you prevent unexpected system constraints and catastrophic safety failures.
Continuous Flow Dominance: A 1/2 hydraulic hose is optimal for continuous flow applications (like hydraulic motors) to keep fluid velocity below the critical 15–20 ft/min threshold.
The Pressure Paradox: Increasing hose I.D. inherently decreases maximum working pressure; a standard 1/2-inch hose will have a lower PSI rating than a 3/8-inch hose of the exact same material and layer count.
System Integrity Matters: Upgrading hose size will not increase system flow if restricted by pump displacement limits or "fixed orifice" effects at the fittings or valves.
Safety & Routing Trade-offs: Larger hoses mean a wider bend radius, complicating routing in tight spaces and amplifying risks like whipping or fluid injection if improperly secured.
Selecting the correct inner diameter (I.D.) directly influences equipment responsiveness and longevity. Many operators default to larger sizes to reduce friction. While friction reduction is real, the specific application dictates whether this upsize is necessary or wasteful.
Different hydraulic loads put entirely different stresses on fluid transport lines. We categorize these demands into intermittent and continuous operations.
Intermittent loads: Standard lift cylinders, such as those on tractor front-end loaders, perform short bursts of work. They operate efficiently on 3/8-inch or 1/4-inch lines. Short fluid cycles do not generate excessive friction. Therefore, upgrading to a larger size yields almost zero noticeable speed improvement.
Continuous loads: Implements requiring sustained flow demand larger capacities. Devices like hydraulic motors, augers, and heavy-duty trenchers run fluid constantly. They require a 1/2 hydraulic hose to manage the high volume of oil moving through the circuit. A larger I.D. prevents the system from overheating during prolonged use.
Hydraulic design principles establish strict limits on how fast oil should travel. Industry engineering standards dictate fluid velocity should remain between 15 and 20 feet per minute for standard pressure lines. If you force high GPM (Gallons Per Minute) outputs through undersized lines, you create a major physical problem.
High velocity generates immense friction against the inner walls. This friction immediately converts energy into heat. Heat breaks down hydraulic oil viscosity and accelerates inner tube erosion. Elastomer layers become brittle, crack, and eventually blow out. Choosing a 1/2-inch I.D. mitigates this friction loss. It provides enough cross-sectional area to keep fluid velocity within safe thresholds during heavy continuous flow.
A common operator assumption suggests expanding the flow path cures all hydraulic inefficiencies. This thought process ignores critical physics. Every increase in hose volume introduces structural and spatial compromises.
We must clarify a fundamental physical rule. A larger diameter equals a lower pressure tolerance, assuming identical wire reinforcement. The fluid exerts outward force over a larger internal surface area. This increased area places greater stress on the wire braid or spiral layers.

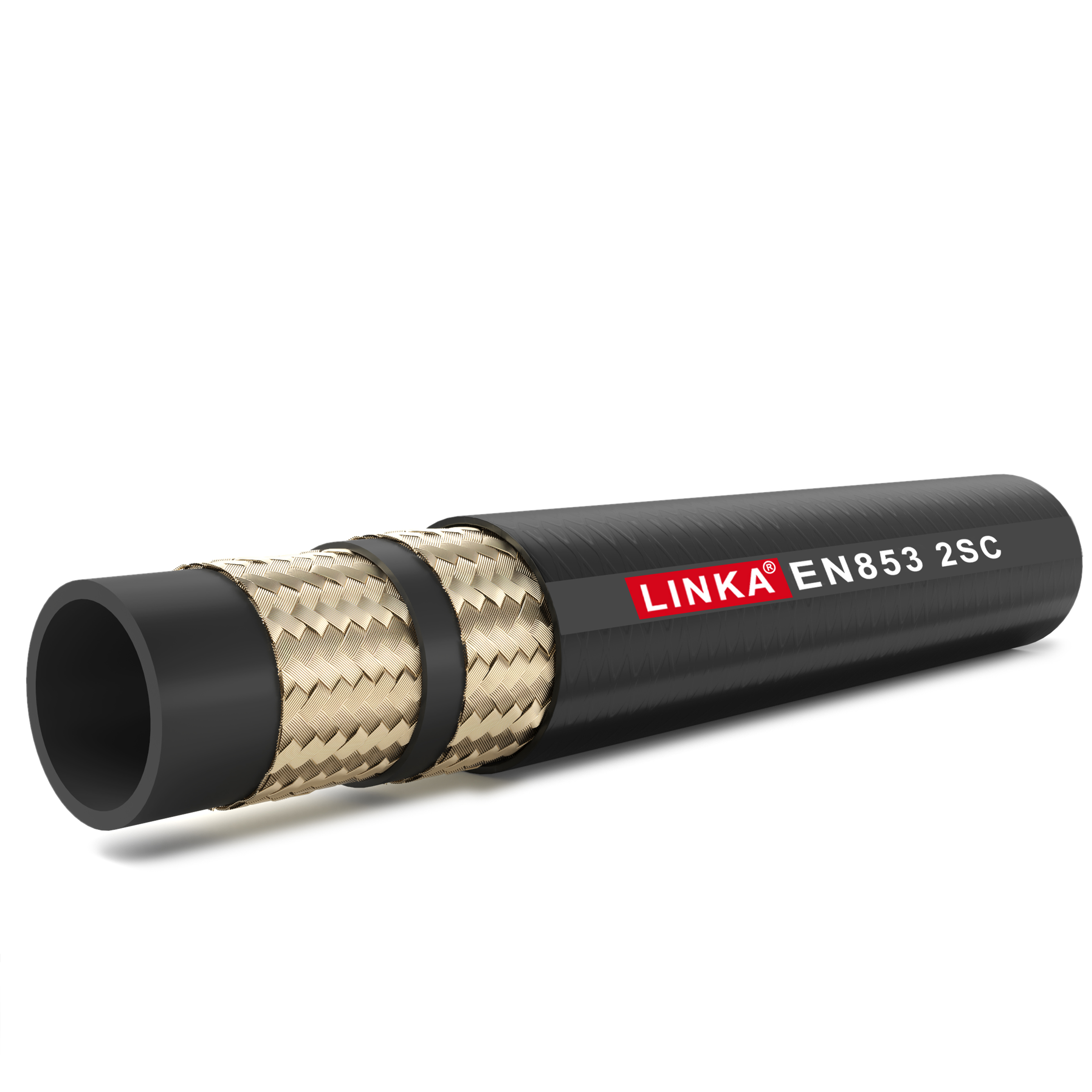

To demonstrate this inversion, review the standard industry baseline chart below. It compares standard two-wire braided assemblies across different sizes.
Hose Inner Diameter (I.D.) | Reinforcement Type | Max Working Pressure (PSI) |
|---|---|---|
1/4-inch | 2-Wire Braided | 5,800 PSI |
3/8-inch | 2-Wire Braided | 4,000 PSI |
1/2-inch | 2-Wire Braided | 3,500 PSI |
As the table highlights, scaling to a 1/2 hydraulic hose forces you to sacrifice 500 PSI of maximum working pressure compared to the 3/8-inch alternative. You must verify your system's peak pressure spikes do not exceed this reduced limit.
Many mechanics upgrade the fluid line but leave existing valves and adapters in place. This creates a "fixed orifice" constraint. The fluid path bottleneck simply moves to the smallest remaining component. If your system pump lacks the displacement capacity to push more oil, or if your manifold valves remain undersized, the thicker line accomplishes nothing. It acts as a large reservoir stuck behind a tiny exit door.
Adding width adds stiffness. A 1/2-inch hose demands a significantly larger bend radius than smaller alternatives. Modern compact machinery features incredibly tight clearances. Forcing a stiff, thick line into these confined spaces creates severe problems. You will strain the crimped fittings and stretch the outer rubber cover. This tension accelerates abrasion and guarantees a premature failure at the connection point.
Professional hydraulic technicians never guess when replacing parts. They use the STAMPED evaluation framework. This acronym ensures every environmental and mechanical variable aligns perfectly.
Sizing (S): You must verify the 1/2-inch I.D. perfectly matches your system GPM targets. Simultaneously, you must measure the outer diameter (O.D.) to ensure the assembly fits through existing bulkheads and routing clamps.
Temperature (T): Consider both internal fluid temperature and external weather conditions. Standard elastomers operate safely between -40°F and 212°F. Extreme arctic or high-heat engine bay applications require specialized synthetic rubber.
Application (A): Define the physical environment. Identify if the line will endure severe agricultural abrasion, constant flexing, or aggressive industrial impacts. Standard lines work fine for basic lifting. However, highly specialized tasks require highly specialized equipment. For ultra-high-pressure cleaning or rigorous hydro-demolition environments, operators must abandon standard hydraulic options entirely. Instead, they require a specialized Waterblast Hose designed specifically for those aggressive fluid jets.
Material (M): Ensure the inner tube remains chemically compatible with the fluid. Petroleum-based fluids, water-glycol mixtures, and synthetic biodegradable oils each require different tube compounds.
Pressure (P): Calculate the maximum system pressure, including sudden hydraulic spikes and pulses. Match this peak demand against the hose's rated maximum working pressure. Do not confuse burst pressure with working pressure. Select braided layers for medium pressure and high flexibility. Choose spiral layers for heavy-duty, high-impulse environments like excavators.
Ends (E): Identify the precise thread compatibility. Mixing different angle standards invites disaster. Attempting to mate a 37° JIC flare with a 45° SAE flare is a severe hazard. It ruins the metal seal and guarantees high-pressure blowouts.
Delivery (D): Confirm packaging, testing requirements, and delivery timelines before committing to bulk purchases or critical replacement parts.
High-pressure fluid power handles immense stored energy. Expanding the volume of fluid via a larger diameter inherently increases the potential danger during a component failure. Safety is never optional.
The foremost danger is fluid injection. When an oversized line develops a pinhole leak under pressure, the escaping oil becomes a microscopic blade. This fine jet can easily pierce human skin and inject toxic fluid directly into the bloodstream. Treating a fluid injection injury requires immediate, specialized surgical intervention. Larger volume systems require stringent daily inspection protocols to catch outer cover damage before it compromises the wire braid.
Whipping hazards represent another critical threat. If a fitting blows off under pressure, the sudden release of energy causes the heavy line to thrash violently. A 1/2-inch line possesses enough mass to inflict lethal blunt-force trauma. Proper securing, clamping, and the use of nylon protective sleeving prevent this uncontrolled whipping motion.
Always evaluate parts against stringent industry standards. Components featuring MSHA-approved (Mine Safety and Health Administration) covers provide superior flame resistance and abrasion durability. This certification proves the rubber compound underwent rigorous safety testing.
Furthermore, strictly enforce Depressurization Standard Operating Procedures (SOPs). Operators must relieve all trapped hydraulic pressure from accumulators and cylinders prior to attempting any removal or maintenance.
If you recently upgraded your equipment lines and see zero improvement, you likely misdiagnosed the actual bottleneck. Larger internal diameters cannot fix fundamental system flaws.
Operators frequently complain about engine "lug down." This occurs when the engine rpm drops noticeably while lowering an implement. Many assume the fluid is struggling to return to the tank fast enough, prompting them to buy a larger line. In reality, the issue almost always points to hidden restrictors within the valve blocks. Manufacturers intentionally install these flow restrictors to prevent heavy implements from crashing to the ground too quickly. Do not blame the hose diameter for a valve block's intentional design.
Performance drops significantly when mechanics mix incompatible components. A common mistake involves adapting 5/8-inch lines down to 1/2-inch ends. This configuration creates an unintentional flow restriction. The fluid moves smoothly through the wide section but hits a sudden physical wall at the termination point. This sudden reduction generates turbulence, heat, and severe pressure drops.
Before committing to a full system replacement, conduct a comprehensive audit. You must measure actual pump GPM output under load. Review valve flow ratings and inspect all fitting diameters. Ensure you target the correct component causing the sluggishness.
Common Mistakes to Avoid:
Assuming higher maximum pressure ratings automatically equal better quality.
Ignoring the minimum bend radius during installation.
Using teflon tape on hydraulic fittings designed to seal on metal-to-metal contact.
A 1/2 hydraulic hose serves as a critical component for high-volume, continuous-flow machinery. It effectively manages fluid velocity and prevents excessive friction heat during heavy operations. However, it is absolutely not a universal upgrade for sluggish, intermittent-load systems.
To optimize your equipment, base your purchasing decisions on concrete data. Evaluate actual pump output, calculate acceptable pressure drops, and perform a strict system bottleneck analysis. By applying the STAMPED framework and prioritizing safety standards, you ensure every fluid connection enhances system integrity rather than compromising it.
A: No. Given the same construction and layer count, a larger internal diameter results in a lower maximum working pressure. The increased internal surface area puts more physical stress on the wire reinforcement layers.
A: Yes, but it is often unnecessary. 3/8 inch is typically sufficient for intermittent lift cylinders; 1/2 inch may complicate routing without providing noticeable speed improvements. Forcing a thicker line into a compact tractor strains the connections.
A: The 1/2 inch fitting acts as a fixed orifice, dictating the maximum flow rate and effectively negating the benefits of the larger hose diameter. It restricts fluid speed, creates turbulence, and increases system heat.
