| Quantity: | |
|---|---|
  | Type | I.D. | O.D. | W.P. | B.P. | B.Radius | Weight | ||||
| dash | inch | mm | inch | mm | Bar | Psi | Bar | mm | Lb/ft | Kg/m | |
| R6-04 | 1/4" | 6.4 | 0.53 | 13.5 | 28 | 400 | 112 | 65 | 0.10 | 0.15 | |
| R6-05 | 5/16" | 8.0 | 0.59 | 15.0 | 28 | 400 | 112 | 75 | 0.13 | 0.20 | |
| R6-06 | 3/8" | 9.5 | 0.65 | 16.5 | 28 | 400 | 112 | 75 | 0.17 | 0.25 | |
| R6-08 | 1/2" | 12.7 | 0.81 | 20.5 | 28 | 400 | 112 | 100 | 0.24 | 0.35 | |
| R6-10 | 5/8" | 15.9 | 0.95 | 24.2 | 24 | 350 | 96 | 125 | 0.30 | 0.45 | |
| R6-12 | 3/4" | 19.0 | 1.08 | 27.5 | 21 | 305 | 84 | 150 | 0.37 | 0.55 | |
| R6-16 | 1" | 25.4 | 1.36 | 34.5 | 21 | 305 | 84 | 205 | 0.47 | 0.70 | |

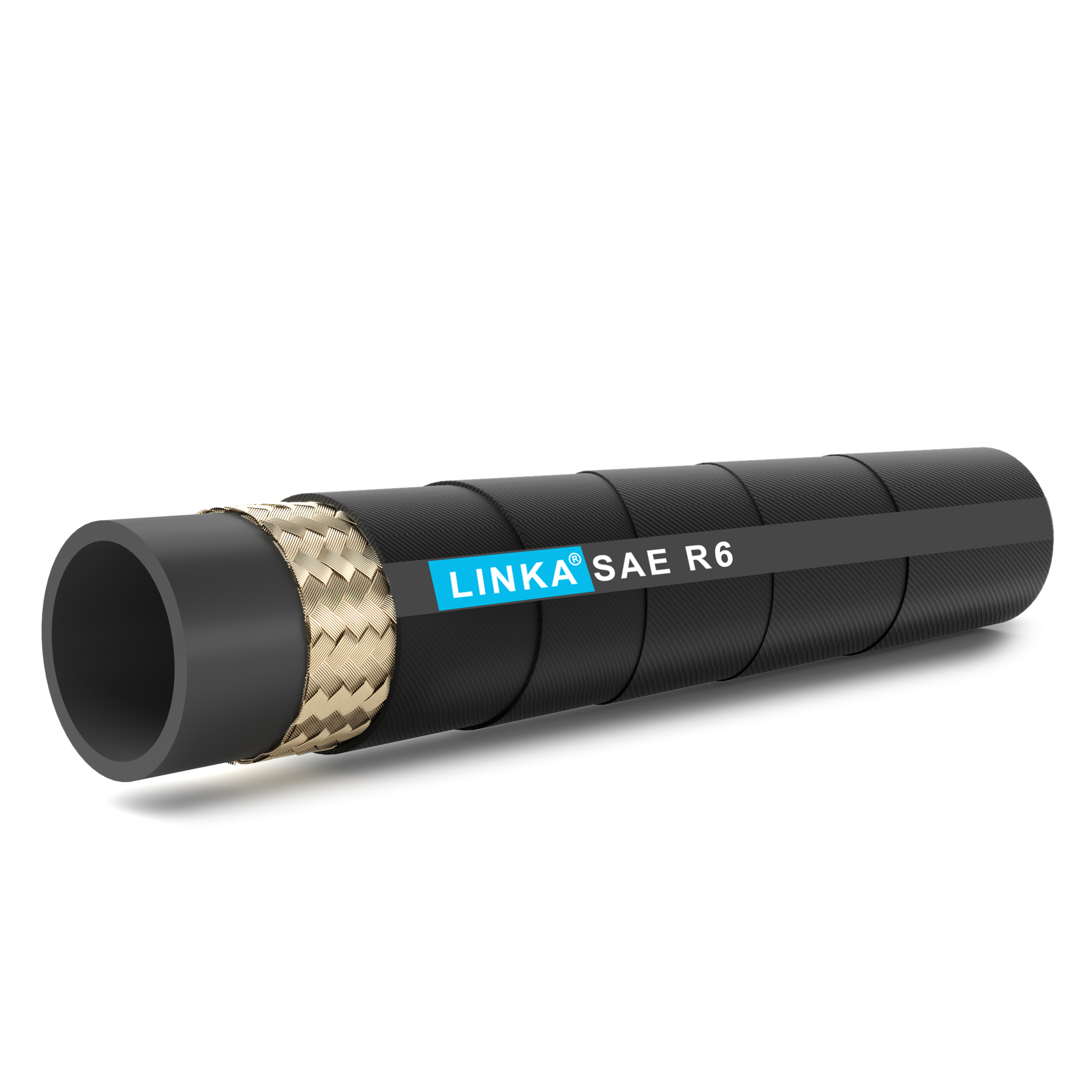

Inner tube: The inner tube is made of oil-resistant synthetic rubber material, mostly nitrile rubber (NBR).
Reinforcing layer: The reinforcing layer is a key structure of the SAE 100 R6 hydraulic hose, woven from a layer of high-strength textile fibers.
Outer coating: The outer coating is made of synthetic rubber that is oil-resistant, wear-resistant, weather-resistant and ozone-resistant.
Medium and low pressure applicability: SAE 100 R6 hydraulic hoses are mainly suitable for medium and low pressure hydraulic systems. Their working pressure can generally reach 28 to 35 bar (approximately 406 to 508 psi), and the specific value may vary depending on the pipe diameter.
Temperature adaptability: This model of hydraulic hose can operate stably within a wide temperature range, with the applicable temperature range typically being -40 ℃ to 100℃ (some products can withstand even higher temperatures).
In industrial production, SAE 100 R6 hydraulic hoses are widely used in the hydraulic systems of various light processing equipment, such as small injection molding machines, light punch presses, and hydraulic drive devices in automated assembly production lines.
In some small or auxiliary construction machinery, such as the pilot control oil circuit of small excavators, the power steering system of forklifts, and the hydraulic drive devices of garden machinery, SAE 100 R6 hydraulic hoses play a significant role.
