| Quantity: | |
|---|---|
  | Type | I.D. | O.D. | W.P. | B.P. | B.Radius | Weight | ||||
| dash | inch | mm | inch | mm | Bar | Psi | Bar | mm | Lb/ft | Kg/m | |
| ST-1W-08 | 1/2" | 12.0 | 0.94 | 24.0 | 10 | 150 | 100 | 70 | 0.383 | 0.57 | |
| ST-1W-12 | 3/4" | 19.0 | 1.26 | 32.0 | 10 | 150 | 100 | 100 | 0.612 | 0.91 | |
| ST-1W-16 | 1" | 25.0 | 1.54 | 39.0 | 10 | 150 | 100 | 140 | 0.847 | 1.26 | |
| ST-1W-20 | 11/4" | 32.0 | 1.85 | 47.0 | 10 | 150 | 100 | 200 | 1.075 | 1.60 | |
| ST-1W-24 | 11/2" | 38.0 | 2.09 | 53.0 | 10 | 150 | 100 | 250 | 1.243 | 1.85 | |
| ST-1W-32 | 2" | 50.0 | 2.64 | 67.0 | 10 | 150 | 100 | 350 | 1.714 | 2.55 | |
| ST-2W-08 | 1/2" | 12.0 | 0.98 | 25.0 | 18 | 270 | 180 | 120 | 0.484 | 0.72 | |
| ST-2W-12 | 3/4" | 19.0 | 1.30 | 33.0 | 18 | 270 | 180 | 180 | 0.746 | 1.11 | |
| ST-2W-16 | 1" | 25.0 | 1.57 | 40.0 | 18 | 270 | 180 | 240 | 1.035 | 1.54 | |
| ST-2W-20 | 11/4" | 32.0 | 1.89 | 48.0 | 18 | 270 | 180 | 320 | 1.290 | 1.92 | |
| ST-2W-24 | 11/2" | 38.0 | 2.13 | 54.0 | 18 | 270 | 180 | 380 | 1.512 | 2.25 | |
| ST-2W-32 | 2" | 50.0 | 2.68 | 68.0 | 18 | 270 | 180 | 480 | 2.016 | 3.00 | |

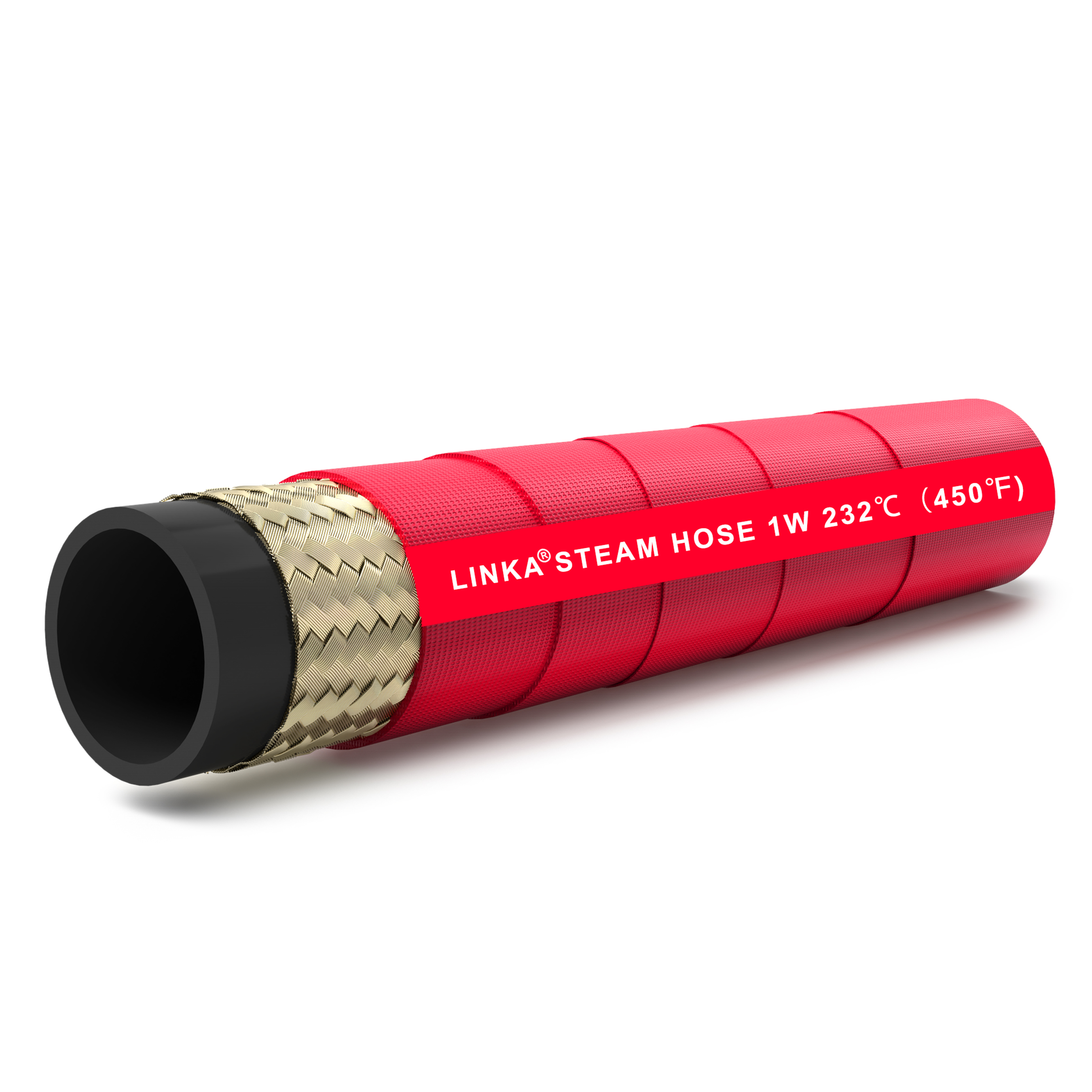

RED STEAM HOSE 1W is a high-performance hose suitable for harsh steam transmission conditions. It is mainly used for steam transportation in industrial scenarios and is widely applied due to its characteristics of temperature and pressure resistance, durability and reliability.
Inner tube: Made of black and smooth ethylene propylene diene monomer (EPDM) rubber, it is heat-resistant and has a stable molecular structure. It can efficiently transport steam. The smooth surface can also reduce the resistance of steam flow and lower energy loss.
Reinforcing layer: A layer of specially treated high-strength braided steel wire with strong tensile strength, which can evenly disperse the high-pressure impact of steam, prevent the pipe body from expanding and cracking, and enhance the reliability in high-pressure environments.
Outer coating: Red EPDM synthetic rubber, with a striking and easily identifiable appearance. It features wear resistance, high-temperature resistance, and resistance to harsh weather and ozone erosion, effectively protecting the internal structure and extending the hose's lifespan.
It can withstand a pressure of 17-18bar, meeting the demand for industrial high-pressure steam. The temperature resistance range is from -40 ℃ to 210℃, and it can withstand a short-term high temperature of 232℃, making it suitable for different temperature conditions.
Resistant to chemical corrosion, it can withstand common chemicals and commercial cleaning agents, and is suitable for complex chemical environments.
It is highly durable, capable of withstanding steam transmission vibration and external punctures, reducing maintenance and replacement costs, and ensuring stable transportation.
It is suitable for the chemical industry (transporting superheated steam to assist reactions and heating), the steel and metallurgy industry (billet heating, equipment cleaning, etc.), the food processing industry (transporting sanitary steam for sterilization, cooking, etc.), and the shipbuilding industry (steam power systems, cleaning equipment, etc.). It is an ideal choice for industrial steam transportation.
